KO Technologies Factory Spec special editio motor - Colour Gold & Black



The Factory spec features a higher KV wind, Magnets imported from Europe and a unique colour set with laser etching and ultra high quality finish.



**Shipping Lead time approxmiately 2-3 weeks**



MOTOR CASING FEATURES

  • DIRECT DROP IN REPLACEMENT FOR SUR-RON AND SEGWAY X260.

  • MOTORWEIGHT (INCLUDING WIRES) - 10KG,

  • MOTORCYCLE GRADE ANODIZED FINISH FOR MAXIMUM DURABILITY AND HEAT DISPERSION (NOT POWDER COATED).

  • 7075 AIRCRAFT GRADE BILLET MACHINED END CAPS AND SENSOR CAP.

  • STAINLESS STEEL WATER PROOF PHASE AND SENSOR WIRE GLANDS.

INTERNAL MOTOR FEATURES​

  • INTERNAL MAGNET MOTOR (IPM) KO DESIGNED MANUFACTURED ROTOR / STATOR.

  • STATOR DIMENSIONS - 160mm X 53mm.

  • WORKING VOLTAGE - 48V-100V.

  • COLD ROLLED SAE 1045 STEEL SHAFT

  • CUSTOM KO DESIGNED AND PATENTED ROTOR AND HEAT SINK DESIGN ALLOWS HEATSOAK DISSIPATION ON THE ENDS OF THE STATOR.

  • KO DESIGNED AND PATENTED INTERNALS PRESSURE EQUALIZATION SYSTEM COMPATIBLE.

  • KO DESIGNED AND PATENTED CRYO COLD AIR INJECTION SYSTEM COMPATIBLE.

  • KO DESIGNED AND MANUFACTURED CRYO ROTOR/ STATOR ANTI CORROSION COATING.

  • INDUSTRY LEADING SKF BEARING AND SEALS (OR EQUIVALENT)FOR THE LOWEST ROLLING RESISTANCE AND EFFICIENCY.

  • JAPANESE SOURCED 0.35 NIPPON STEEL STATOR / ROTOR LAMINATED.

  • INDUSTRY LEADING 1.5mm AIR GAP.

  • INDUSTRY LEADING 150°C / 302F SH50 NEO MAGNETS.

  • HAND WOUND 220°C HIGH TEMP COPPER WINDINGS.

  • CUSTOM WATERPROOF DESIGNED (IP69)  AND MANUFACTURED HALL SENSOR WITH 12 MONTH REPLACEMENT WARRANTY AGAINST WATER / MOISTURE DAMAGE.

MOTOR OPERATING SPECIFICATION

  • POWER -  35KW  (BASED ON THE MOTOR RATING, YOUR BATTERY WILL DETERMINE THE POWER PRODUCED BY THE MOTOR)

  • MAX TORQUE @60V - 55NM

  • MAX STABLE ROTOR RPM - 12,000RPM

  • MAX EFFICIENCY 97%

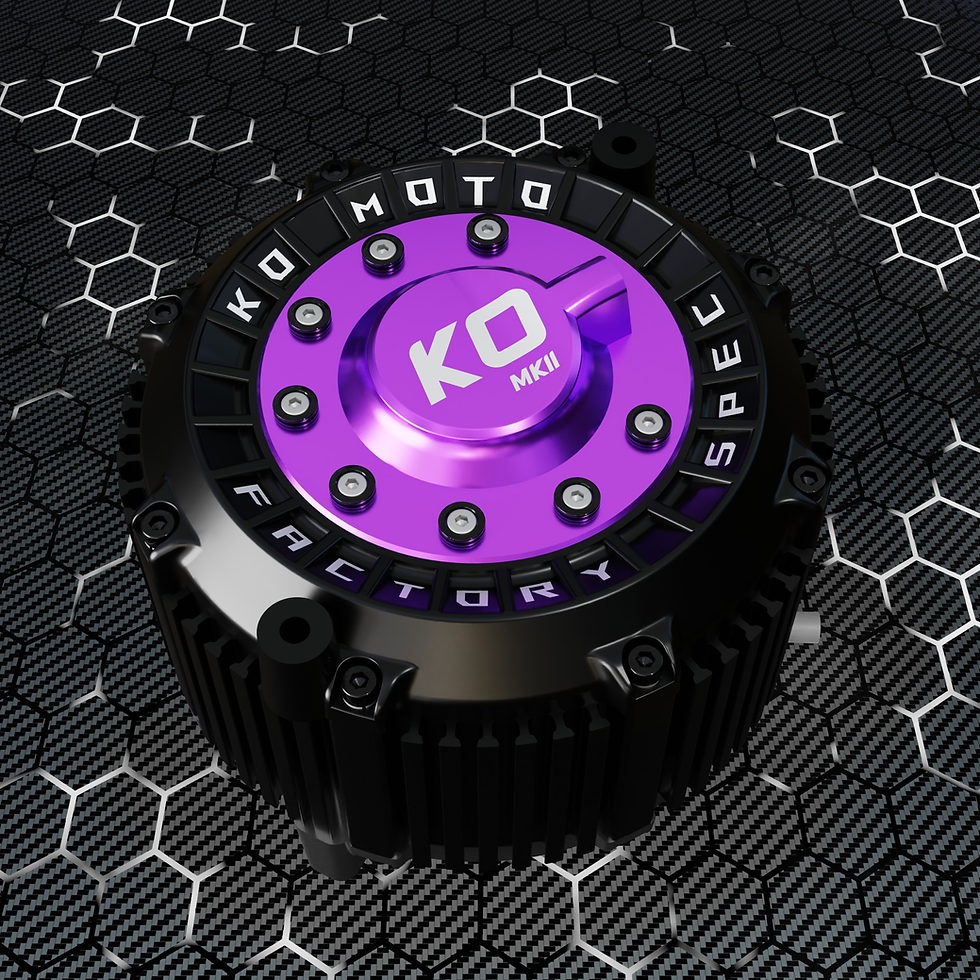

KO Factory Spec Sur-Ron Upgrade Motor (Various Colours)

$1,059.00Price
Colour
