WHY SHOULD I BUY A KO CONTROLLER?
It is very simple. We have made this controller and all of our controllers specifically for one purpose...to live on the front of your e-bike. Forget other controllers that have been made for a golf kart, go-kart, fork-lift or any other kind of micro mobility / hobby vehicle. Our controllers are made for your Sur-Ron and Talaria. As such they have a proper factory fit, with no extra hoops to jump through. We only use the highest quality components and quality control , unlike other controllers in the market which have suffered many issues of late. We fully test and design our products to be the best available, with proper IP67 waterproofing and all of the features you would expect from them without the need to pay extra for the software to work them or additional equipment to make them run properly. Below you will find details of our Nano controller and what makes it different from any other controller on the market for your Sur-Ron / Talaria highlighting why we offer the best and most suitable controller on the market for this sector.
450A DC
830 PHASE AMPS
SPECIFICATIONS
​
INPUT VOLTAGE RANGE - 40v-100v
WORKING VOLTAGE - 60-100V
​
MAX PHASE CURRENT - 830A
​
MAX CURRENT 450A
PEAK OUTPUT POWER - 44.9KW
​
INGRESS PROTECTION - IP67
​
OPERATING TEMPERATURE - -25—80℃
​
MAXIMUM EFFICIENCY - >95%
​
$1099
The KO Moto Controller represents a massive leap forward for the Sur-Ron and Talaria Electric bikes. Not only does it have very simple drop in fitting, it also uses the stock Sur-Ron and Talaria display negating the need to run additional cables and the need to purchase additional displays.
​
The KO Controller has been designed with high quality and simplicity in mind. Using the highest quality components and state of the art technology it is capable of supporting up to 35KW, has IP67 water ingress protection and will work with an input range from 40-100volts.
​
​
FACTORY FIT AND FINISH
IP67 - WATERPROOFING

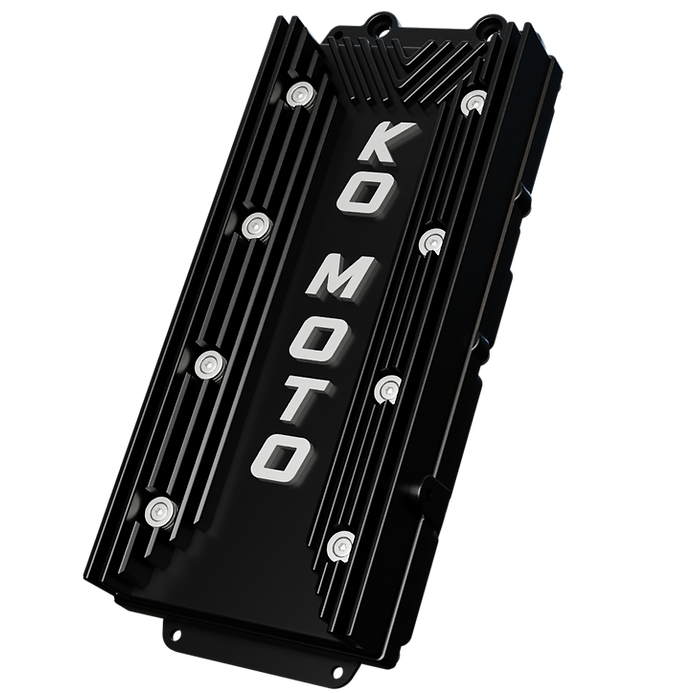

FULL CNC HEATSINK
DIMENSIONS 278mm * 121mm * 54mm
CONTROLLER FEATURES
1) TRUE FACTORY FIT
This controller will fit to your Talaria, or Sur-Ron using the stock mounting positions on your bike. It will also connect directly to the cabling that comes with your bike as standard. This means that you don't have to do any additional procedures to fit, no extra cables, no extending phase wires and no extra messing around with brackets to get it on your bike. It will fit just like a stock controller would, because it was made to fit this way.
​
2) PROPER WATERPOOFING
Unlike other controllers the Pro Series was made to go on the front of your e-bike and designed for the outdoors. As such it has a full ip67 waterproof rating. You don't need to take any extra steps to waterproof your controller and all of the cabling that may see potential water ingress is fully potted to prevent internal damage.
​
3) FULL CNC HEATSINK
All of our controllers offer a full CNC heatsink as part of the design, not as an after thought that you get charged extra for. The heatsink on our controller actually does its job at dissipating heat, rather than other controllers where it serves as just a nicer looking cover.

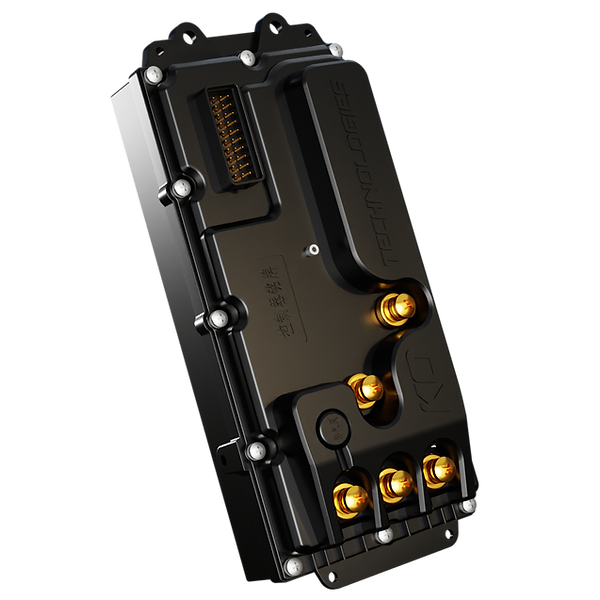

CONTROLLER INTERNALS
1) HIGH QUALITY TRUSTWORTHY
COMPONENTS
The Pro controller has high quality components that we have performed extensive testing on and trust. We never compromise on the quality of our work or components.
​
2) LEADING DESIGN
The Pro controller is a complete in house project, both software and hardware is designed and manufactured by us to the latest industry standards and specifications.
​
3) PC & ANDROID PHONE SOFTWARE COMPATIBLE.
​
The Pro controller is fully compatible with the KO Control suite for the pc and will also work with the KO Moto Android app (MAC version in development).
​
ABOUT THE KO SOFTWARE - WHAT CONTROL DO YOU HAVE?
1) CHOOSE YOUR POWER AND FEEL.
Our software solution allows you to have maximum customisation of your ride. You have full control over DC power and phase amps for up to 450A DC and 830 Phase Amps. In addition you have access to multiple throttle curves, RPM torque adjustment, regen braking strength, throttle voltage adjustment and acceleration profile. These options are available through our PC software and Android app with an IOS app in development. You can also switch between 60 and 72v batteries with just a simple download and update.
2) WE WILL NEVER LOCK YOU OUT OF OUR SOFTWARE
Our software is open to retailers and end users alike. We want everyone to know that we will never lock them out of using our software, nor do they need to pay any extra for updates, or support for their KO product. The software that comes with all of our controllers is free to use and will remain free to all. We are not a third party developer so we will never charge or implement charges for you to use our products.
3) CUSTOMER SUPPORT
We offer free tuning support and technical help. Unlike many competitors where you are charged for a support call, we will never charge you for technical or tuning support calls. Our primary method for support is our discord server which has a community of hundreds of users. Here you can share information and tips along with requesting a one to one call with one of our support staff. We have dedicated support staff based in UK and USA time zones. We are happy to help any customers get the tune and the feel of their bike just right for them. A link to our discord channel will be sent automatically via email once a purchase as been made at which point you are free to join us any time you like.
